ANSI #25H Industrial Heavy Duty Roller Chain

Pitch Size: 0.250 Inch

Length: 3 Feet

Average Tensile Strength: 1240 lb

Weight Per Foot: 0.114 lbs

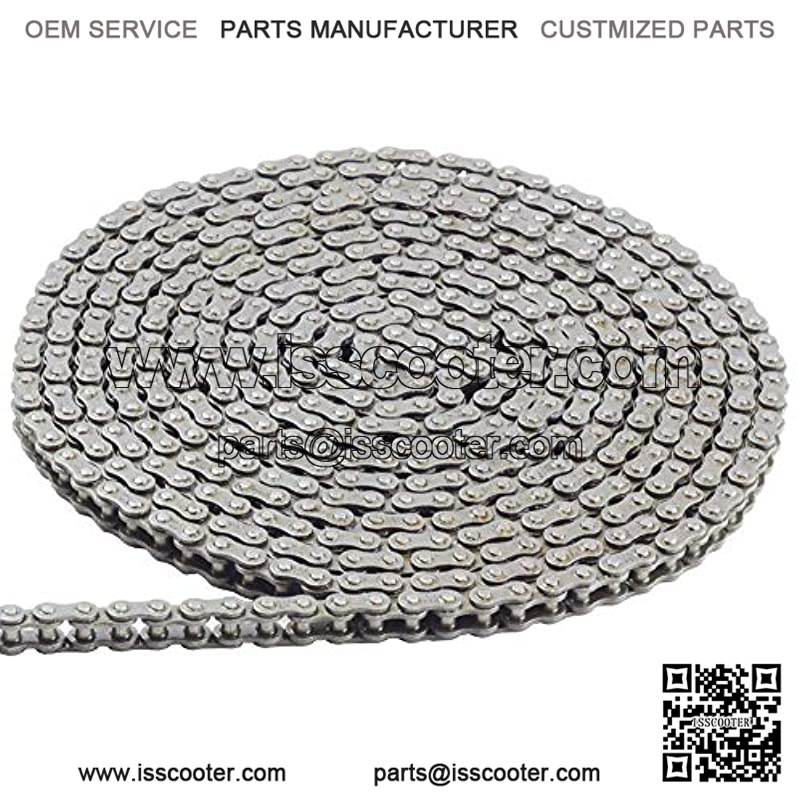

#25H Heavy Duty Chain 3 FT with 1 Connecting Link, For Scooter, Mini Bike, GoKart
Pitch Size: 0.250 Inch
Roller Diameter: 0.130 Inch
Width Between Inner Plates: 0.125 Inch
Pin Diameter: 0.091 Inch
Pin Length L Max: 0.350 Inch
Pin Length Lc Max: 0.374 Inch
Inner Plate Depth: 0.236 Inch
Plate Thickness: 0.041 Inch
Average Tensile Strength: 1240 lb
Material: Carbon Steel
Length: 3 Feet
Weight Per Foot: 0.114 lbs
All of our chain products have gone through stringent process measures for Best Quality! This includes heat treatment, which ensures the optimum ware life and toughness for all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth. During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life. Assembled chains are then dipped in a hot lubricant. This lubrication and the process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the environment. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will see when in use. This helps align the chain parts which will minimize the initial elongation. This will drastically increase the life of the chain. All our Chain is certified from ISO 9001:2000 QM certification through ISO 14001 (which documents the sustainability and environmental compatibility of production and waste disposal processes) to the ISO/TS 16949 quality requirements for the automotive industry.
