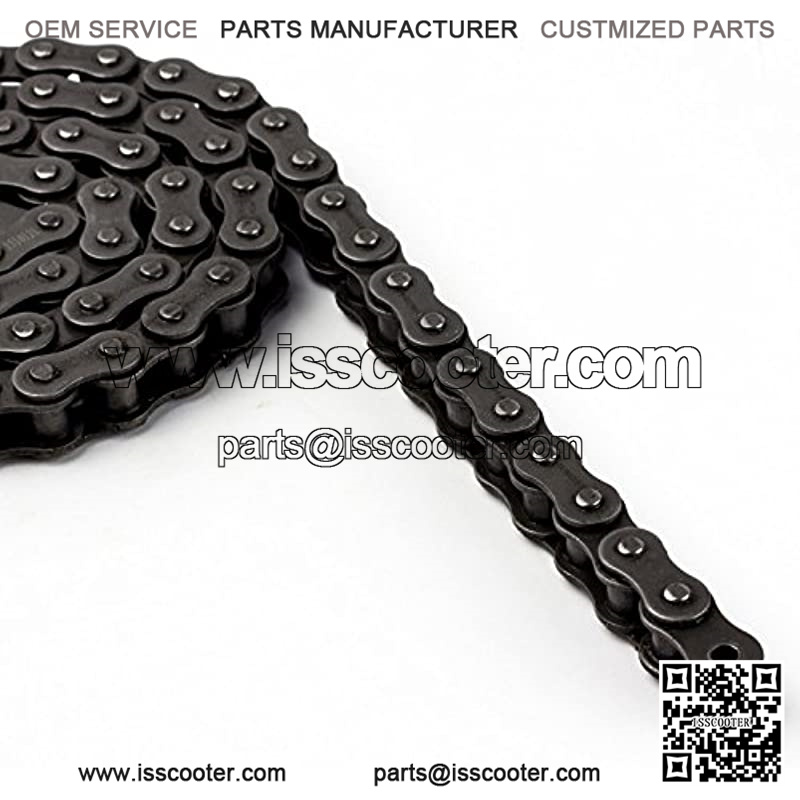

41 Roller Chain 3 Feet with 1 Connecting Links Go-Karts, Scooters and Mini Bikes

SKU LT.02870 Category Tags ,

SPREAD THE LOVE

Share on facebook
Share on twitter
Share on linkedin
Share on pinterest
Share on telegram
Share on odnoklassniki
Share on reddit
Share on whatsapp
Share on email

Descrtption

ANSI #41 Industrial Roller Chain

Pitch Size: 0.500 Inch

Length: 3 Feet Box

Average Tensile Strength: 2400 lbs

Weight Per Foot: 0.275 lbs
#41 Roller Chain 3 Feet with 1 Connecting Links Go-karts, Scooters and Mini Bikes
Pitch Size: 0.500 Inch
Roller Diameter: 0.306 Inch
Width Between Inner Plates: 0.246 Inch
Pin Diameter: 0.141 Inch
Pin Length L Max: 0.541 Inch
Pin Length Lc Max: 0.591 Inch
Inner Plate Depth: 0.390 Inch
Plate Thickness: 0.051 Inch
Average Tensile Strength: 2400 lb
Material: Carbon Steel
Length: 3 Feet
Weight Per Foot: 0.275 lbs
All of our chain products have gone through stringent process measures for Best Quality! This includes heat treatment, which ensures the optimum ware life and toughness for all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth. During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life. Assembled chains are then dipped in a hot lubricant. This lubrication and the process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the environment. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will see when in use. This helps align the chain parts which will minimize the initial elongation. This will drastically increase the life of the chain. All our Chain is certified from ISO 9001:2000 QM certification through ISO 14001 (which documents the sustainability and environmental compatibility of production and waste disposal processes) to the ISO/TS 16949 quality requirements for the automotive industry.
