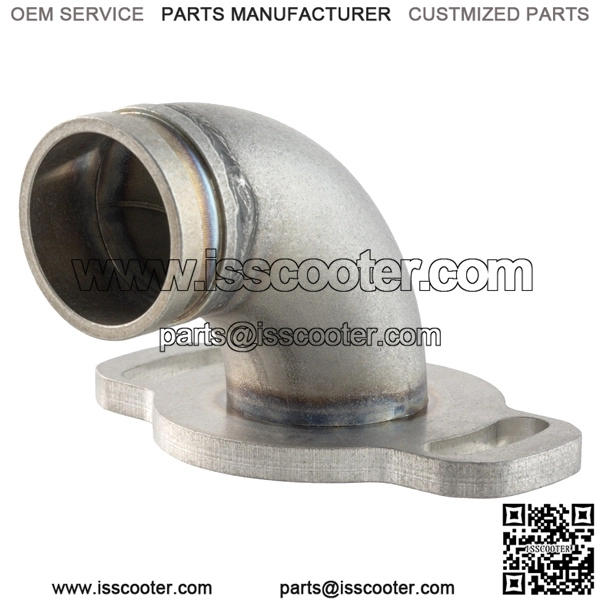

Intake Manifold MRP BFA 187/ 215/ 225/ 306 upper part

for Vespa 125 VNA-TS/ 150 VBA-Super/ 160 GS/ 180 SS/ Rally/ PX/ PE/ Lusso/ T5
nach vorne
for MRP connecting piece
inner diameter: 30mm
outer diameter: 35mm
reed valve
stud connection
aluminium CNC
hole distance 70mm

TUNING RACE – for professionals Product description
A manifold with a modular assembly, from MRP, for the -BFA Vespa largeframe engine.

The -BFA largeframe engine design includes a large reed-valve inlet, located centrally, over the crankshaft webs. The carburettor flange, or manifold, is routed so the carburettor faces towards the rear of the scooter. MRP have conceived and produced a modularly assembled manifold system, allowing the fitting of differently sized carburettors, in varying positions with numerous reed-petal types.
Various sizes.
Perfect carburettor positioning.
Available for the BFA and Italkit reed-valves.
This manifold system consists of a CNC machined connection, that can be directly bolted to the reed-valve and a manifold to which the carbu
